Precision & Selective Gold Plating for Machined Parts

Drawing-led electroplating for precision machined components and package housings. Specify selective gold-plating areas, coating layers and finished dimensions for engineering review.

Electroplating

Process overview

What this capability delivers

JYX reviews electroplating requirements for precision machined components, including selective gold plating on package housings. A Cu–Ni–Au stack and the areas to be plated must be specified for the component and assembly process; a coating name alone is not a complete specification.

Define the component and supply scope

For a machined and plated component, identify which machining, cleaning, masking and finishing operations the quotation must cover. For plating of customer-supplied parts, include the incoming material, surface condition and any previous finish. Process ownership and acceptance criteria are agreed for the project.

What to define on the drawing

  • Base material, surface condition and drawing revision.
  • Each coating layer, thickness requirement and measurement location.
  • Plated areas, masking boundaries and surfaces that must remain unplated.
  • Final dimensions after plating and allowances on mating or sealing surfaces.
  • Applicable specification, inspection method and report requirements.

Gold purity, hardness and coating thickness describe different requirements. If a standard is specified, include its edition, type, grade or class as applicable. The exact coating system is confirmed against the drawing; generic soft/hard gold labels should not be substituted for an agreed specification.

See the precision gold plating drawing and inspection guide and the laser package housing for related component requirements.

Process workflow

From drawing to delivery

  1. 01Review material, drawing revision, coating stack and plated areas.
  2. 02Confirm masking boundaries, dimensional allowances and inspection plan.
  3. 03Process the component to the approved project specification.
  4. 04Check agreed features and provide the specified inspection records.

Quality control

How we verify

The inspection plan should identify measurement areas, layer-thickness requirements, masking boundaries and final dimensional checks. XRF or other specified methods are selected for the component and coating system; required records and acceptance criteria are agreed before production.

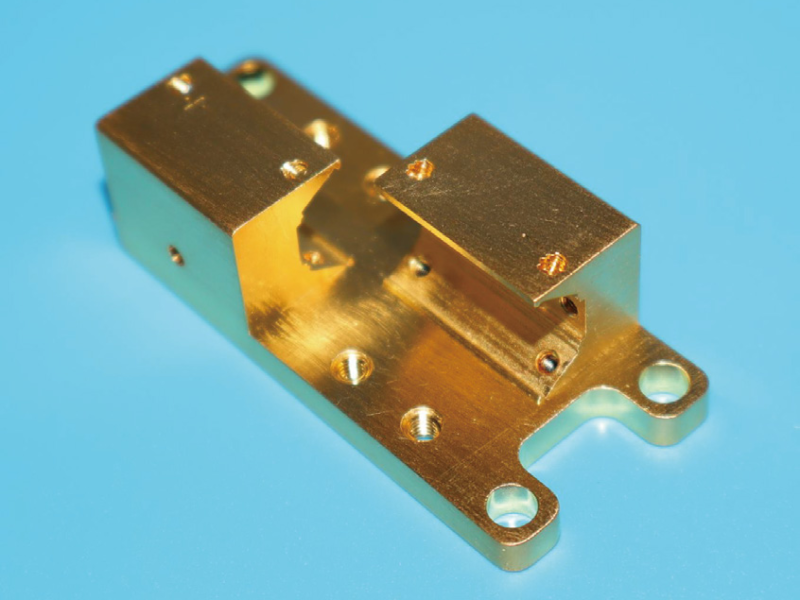

See the Kovar housing case for a published application. A case-specific result does not establish an acceptance limit for every new component.

Industries

Where this capability is applied

FAQ

Frequently asked questions

What is needed for a selective gold plating quote?

Provide the substrate, drawing revision, plated-area drawing, layer stack, thickness limits, measurement locations, quantity and applicable specification. Identify surfaces that must remain unplated.

Can gold purity alone define the coating?

No. Purity, hardness, thickness, underlayers and plated areas are different requirements. Specify the applicable standard and the complete coating stack for engineering review.

How are coating inspection requirements agreed?

State the required measurement method, locations, acceptance limits and report format. The method and scope are reviewed against the component and coating system before quoting.
